产品详情

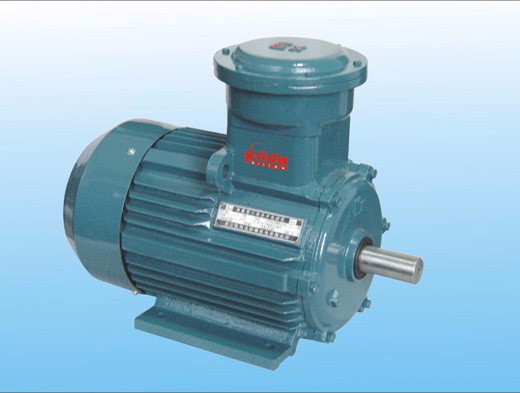

产品名称: | YB2系列隔爆型三相异步电动机 |
YB2系列隔爆型三相异步电动机(机座号63~355),按照GB3836.1-2000《爆炸性气体环境用电气设备 第1部分:通用要求》、GB3836.2-2000《爆炸性气体环境用电气设备 第2部分:隔爆型“d” 》、的要求,制成隔爆型。防爆标志为ExdI、ExdⅡAT4、ExdⅡBT4。适用于含有甲烷或煤尘的煤矿井下固定式设备上(ExdI)或蒸气与空气形成的爆炸性混合物的场所内的设备上,作为一般动力设备使用。 |
YB2系列技术数据 | ||||||
型号 | 额定功率 | 额定电压 | 额定电流 | 额定频率 | 转速 | |
(kW) | (HP) | (V) | (A) | (Hz) | (r/min) | |
同步转速 3000r/min 2极 | ||||||
YB2-801-2 | 0.75 | 1 | 380 | 1.8 | 50 | 2840 |
YB2-802-2 | 1.1 | 1.5 | 380 | 2.6 | 50 | 2840 |
YB2-90S-2 | 1.5 | 2 | 380 | 3.4 | 50 | 2850 |
YB2-90L-2 | 2.2 | 3 | 380 | 4.8 | 50 | 2850 |
YB2-100L-2 | 3 | 4 | 380 | 6.2 | 50 | 2870 |
YB2-112M-2 | 4 | 5.5 | 380/660 | 8.1/4.7 | 50 | 2890 |
YB2-132S1-2 | 5.5 | 7.5 | 380/660 | 11.1/6.3 | 50 | 2900 |
YB2-132S2-1 | 7.5 | 10 | 380/660 | 14.8/8.6 | 50 | 2900 |
YB2-160M1-2 | 11 | 15 | 380/660 | 21.6/12.5 | 50 | 2940 |
YB2-160M2-1 | 15 | 20 | 380/660 | 28.8/16.6 | 50 | 2940 |
YB2-160L-2 | 18.5 | 25 | 380/660 | 35.5/20.5 | 50 | 2940 |
YB2-180M-2 | 22 | 30 | 380/660 | 41/23.7 | 50 | 2950 |
YB2-200L1-2 | 30 | 40 | 380/660 | 55.5/32.1 | 50 | 2950 |
YB2-200L2-2 | 37 | 50 | 380/660 | 67.9/39.2 | 50 | 2950 |
YB2-225M-2 | 45 | 60 | 380/660 | 82.1/47.4 | 50 | 2960 |
YB2-250M-2 | 55 | 75 | 380/660 | 99.7/57.5 | 50 | 2970 |
YB2-280S-2 | 75 | 100 | 380/660 | 134.4/77.5 | 50 | 2970 |
YB2-280M-2 | 90 | 125 | 380/660 | 160.2/92.5 | 50 | 2970 |
YB2-315S-2 | 110 | 154 | 380/660 | 195.4/112.5 | 50 | 2980 |
YB2-315M-2 | 132 | 184 | 380/660 | 233.2/134.3 | 50 | 2980 |
YB2-315L1-2 | 160 | 222 | 380/660 | 279.3/160.8 | 50 | 2980 |
YB2-315L2-2 | 200 | 279 | 380/660 | 348.4/200.6 | 50 | 2980 |
同步转速 1500r/min 4极 | ||||||
YB2-801-4 | 0.55 | 0.75 | 380 | 1.5 | 50 | 1390 |
YB2-802-4 | 0.75 | 1 | 380 | 2 | 50 | 1390 |
YB2-90S-4 | 1.1 | 1.5 | 380 | 2.9 | 50 | 1390 |
YB2-90L-4 | 1.5 | 2 | 380 | 3.7 | 50 | 1390 |
YB2-100L1-4 | 2.2 | 3 | 380 | 5.1 | 50 | 1420 |
YB2-100L2-4 | 3 | 4 | 380 | 6.8 | 50 | 1420 |
YB2-112M-4 | 4 | 5.5 | 380/660 | 8.8/5.1 | 50 | 1430 |
YB2-132S-4 | 5.5 | 7.5 | 380/660 | 11.5/6.7 | 50 | 1440 |
YB2-132M-4 | 7.5 | 10 | 380/660 | 15.4/8.9 | 50 | 1440 |
YB2-160M-4 | 11 | 15 | 380/660 | 22.3/12.9 | 50 | 1460 |
YB2-160L-4 | 15 | 20 | 380/660 | 30.1/17.4 | 50 | 1460 |
YB2-180M-4 | 18.5 | 25 | 380/660 | 36.5/21.1 | 50 | 1470 |
YB2-180L-4 | 22 | 30 | 380/660 | 43.1/24.9 | 50 | 1470 |
YB2-200L-4 | 30 | 40 | 380/660 | 57.6/33.3 | 50 | 1470 |
YB2-225S-4 | 37 | 50 | 380/660 | 69.9/40.3 | 50 | 1480 |
YB2-225M-4 | 45 | 60 | 380/660 | 84.7/48.9 | 50 | 1480 |
YB2-250M-4 | 55 | 75 | 380/660 | 102.7/59.3 | 50 | 1480 |
YB2-280S-4 | 75 | 100 | 380/660 | 139.6/80.6 | 50 | 1480 |
YB2-280M-4 | 90 | 125 | 380/660 | 166.9/96.3 | 50 | 1480 |
YB2-315S-4 | 110 | 154 | 380/660 | 198.7/114.4 | 50 | 1485 |
YB2-315M-4 | 132 | 184 | 380/660 | 237.7/136.9 | 50 | 1485 |
YB2-315L1-4 | 160 | 222 | 380/660 | 284.3/163.7 | 50 | 1485 |
YB2-315L2-4 | 200 | 279 | 380/660 | 354.7/204.2 | 50 | 1485 |
型号 | 额定功率 | 额定电压 | 额定电流 | 额定频率 | 转速 | |
(kW) | (HP) | (V) | (A) | (Hz) | (r/min) | |
同步转速 1000r/min 6极 | ||||||
YB2-801-6 | 0.37 | 0.5 | 380 | 1.3 | 50 | 890 |
YB2-802-6 | 0.55 | 0.75 | 380 | 1.7 | 50 | 890 |
YB2-90S-6 | 0.75 | 1 | 380 | 2.3 | 50 | 910 |
YB2-90L-6 | 1.1 | 1.5 | 380 | 3.1 | 910 | |
YB2-100L-6 | 1.5 | 2 | 380 | 3.9 | 50, | 930 |
YB2-112M-6 | 2.2 | 3 | 380 | 5.6 | 50 | 940 |
YB2-132S1-6 | 3 | 4 | 380 | 7.3 | 50 | 970 |
YB2-132S2-6 | 4 | 5.5 | 380/660 | 9.4/5.4 | 50 | 970 |
YB2-160M1-6 | 5.5 | 7.5 | 380/660 | 12.6/7.2 | 50 | 970 |
YB2-160M2-6 | 7.5 | 10 | 380/660 | 16.8/9.7 | 50 | 970 |
YB2-160L-6 | 11 | 15 | 380/660 | 24.3/14 | 50 | 970 |
YB2-180M-6 | 15 | 20 | 380/660 | 31.6/18.3 | 50 | 980 |
YB2-200L1-6 | 18.5 | 25 | 380/660 | 37.6/21.7 | 50 | 980 |
YB2-200L2-6 | 22 | 30 | 380/660 | 44.7/25.8 | 50 | 980 |
YB2-225M-6 | 30 | 40 | 380/660 | 57.6/33.3 | 50 | 980 |
YB2-250M-6 | 37 | 50 | 380/660 | 69.8/40.3 | 50 | 980 |
YB2-280S-6 | 45 | 60 | 380/660 | 85.9/49.6 | 50 | 990 |
YB2-280M-6 | 55 | 75 | 380/660 | 104.7/60.5 | 50 | 990 |
YB2-315S-6 | 75 | 100 | 380/660 | 141.7/81.6 | 50 | 990 |
YB2-315M-6 | 90 | 125 | 380/660 | 169.5/97.6 | 50 | 990 |
YB2-315L1-6 | 110 | 154 | 380/660 | 206.7/119 | 50 | 990 |
YB2-315L2-6 | 132 | 184 | 380/660 | 244.7/140.9 | 50 | 990 |
同步转速 750r/min 8极 | ||||||
YB2-801-8 | 0.18 | 0.25 | 380 | 0.8 | 50 | 650 |
YB2-802-8 | 0.25 | 0.34 | 380 | 1.1 | 50 | 650 |
YB2-90S-8 | 0.37 | 0.5 | 380 | 1.4 | 50 | 670 |
YB2-90L-8 | 0.55 | 0.75 | 380 | 2.1 | 50 | 670 |
YB2-100L1-8 | 0.75 | 1 | 380 | 2.4 | 50 | 690 |
YB2-100L2-8 | 1.1 | 1.5 | 380 | 3.3 | 50 | 690 |
YB2-112M-8 | 1.5 | 2 | 380 | 4.4 | 50 | 690 |
YB2-132S-8 | 2.2 | 3 | 380 | 5.6 | 50 | 710 |
YB2-132M-8 | 3 | 4 | 380 | 7.6 | 50 | 710 |
YB2-160M-8 | 4 | 5.5 | 380/660 | 10.3/5.9 | 50 | 720 |
YB2-160L-8 | 5.5 | 7.5 | 380/660 | 13.4/7.8 | 50 | 720 |
YB2-180M-8 | 7.5 | 10 | 380/660 | 17.5/10.1 | 50 | 720 |
YB2-180L-8 | 11 | 15 | 380/660 | 25.3/14.6 | 50 | 730 |
YB2-200L-8 | 15 | 20 | 380/660 | 33.7/19.5 | 50 | 730 |
YB2-225S-8 | 18.5 | 25 | 380/660 | 40/23.1 | 50 | 740 |
YB2-225M-8 | 22 | 30 | 380/660 | 47.4/27.3 | 50 | 740 |
YB2-250M-8 | 30 | 40 | 380/660 | 63.4/36.6 | 50 | 740 |
YB2-280S-8 | 37 | 50 | 380/660 | 77.8/44.9 | 50 | 740 |
YB2-280M-8 | 45 | 60 | 380/660 | 94.1/54.3 | 50 | 740 |
YB2-315S-8 | 55 | 75 | 380/660 | 111.2/64 | 50 | 740 |
YB2-315M-8 | 75 | 100 | 380/660 | 151.3/87.1 | 50 | 740 |
YB2-315L1-8 | 90 | 125 | 380/660 | 177.8/102.4 | 50 | 740 |
YB2-315L2-8 | 110 | 154 | 380/660 | 216.8/124.8 | 50 | 740 |
同步转速 600r/min 10极 | ||||||
YB2-315S-10 | 45 | 60 | 380/660 | 99.1/57.1 | 50 | 585 |
YB2-315M-10 | 55 | 75 | 380/660 | 121.1/69.7 | 50 | 585 |
YB2-315L1-10 | 75 | 100 | 380/660 | 162.1/93.3 | 50 | 585 |
YB2-315L2-10 | 90 | 125 | 380/660 | 191/110 | 50 | 585 |
